The core.grid module

This module is used to define the grid of cells used in a virtual_ecosystem simulation. Square and hexagon grids are currently supported.

import matplotlib.pyplot as plt
import numpy as np

from virtual_ecosystem.core.grid import Grid

Square grids

A square grid is defined using the cell area, and the number of cells in the X and Y directions to include in the simulation.

square_grid = Grid(grid_type="square", cell_area=100, cell_nx=10, cell_ny=10)
square_grid

CoreGrid(square, A=100, nx=10, ny=10, n=100, bounds=(0.0, 0.0, 100.0, 100.0))

Hexagon grids

A hexagon grid is defined in a very similar way - alternate rows of hexagons are offset to correctly tessellate the individual cells.

hex_grid = Grid(grid_type="hexagon", cell_area=100, cell_nx=9, cell_ny=11)
hex_grid

CoreGrid(hexagon, A=100, nx=9, ny=11, n=99, bounds=(0.0, 0.0, 102.08414352323646, 105.46855069823796))

Cell ID codes

Cells are identified by unique sequential integer ID values, which are stored in the Grid.cell_id attribute. These ID values provide an index to other cell attributes stored within a Grid instance:

• Grid.polygon[cell_id]: This retrieves a Polygon object for the cell boundaries.

• Grid.centroid[cell_id]: This retrieves a numpy array giving the coordinates of cell centroids.

These Grid attributes are used in the code below to show the default cell ID numbering scheme.

Show code cell source

Hide code cell source

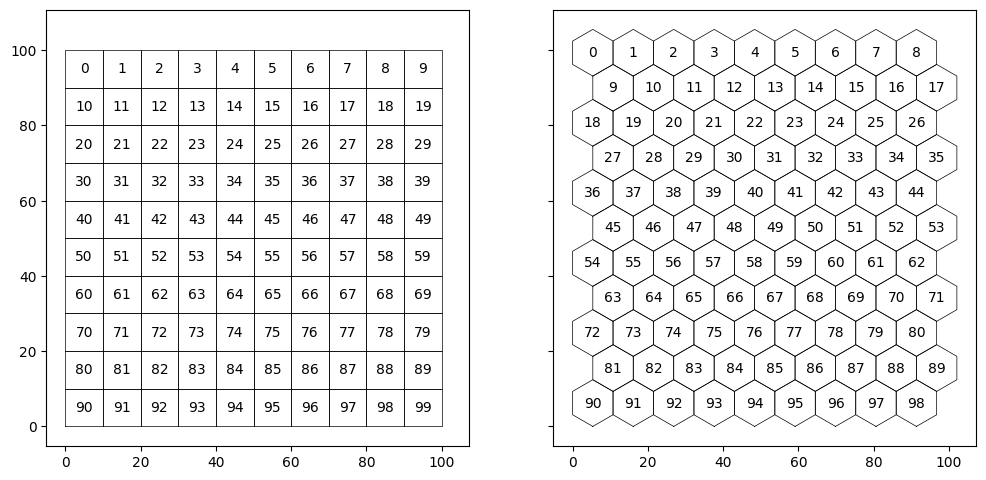

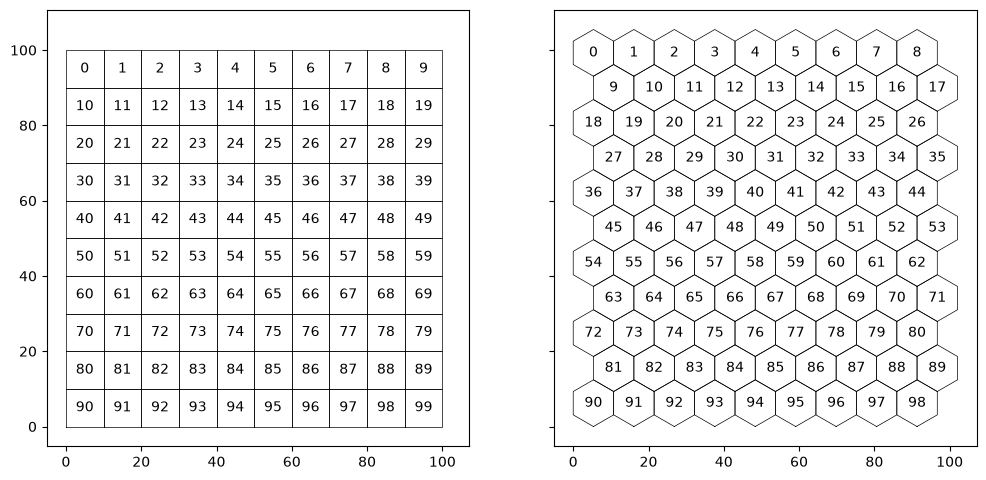

# Side by side plots of the two grid systems
fig, axes = plt.subplots(1, 2, figsize=(12, 6), sharey=True, sharex=True)

for this_ax, this_grid in zip(axes, [square_grid, hex_grid]):

    # Plot the boundary polygon of each cell and label at the centroid
    for cell_id in this_grid.cell_id:

        poly = this_grid.polygons[cell_id]
        centroid = this_grid.centroids[cell_id]

        cx, cy = poly.exterior.coords.xy
        this_ax.plot(cx, cy, color="k", linewidth=0.5)
        this_ax.text(
            x=centroid[0],
            y=centroid[1],
            s=cell_id,
            ha="center",
            va="center",
        )

    # 1:1 aspect ratio
    this_ax.set_aspect("equal")

Grid centroids

The centroids of the grid cell polygons are available via the centroids attribute as a numpy array of (\(x\), \(y\)) pairs: these can be indexed by cell id:

square_grid.centroids[0:5]

array([[ 5., 95.],
       [15., 95.],
       [25., 95.],
       [35., 95.],
       [45., 95.]])

Grid origin

Grid types can take optional offset arguments (offx and offy) to set the origin of the grid. This can be useful for aligning a simulation grid with data in real projected coordinate systems, rather than having to move the origin in multiple existing data files.

offset_grid = Grid(
    grid_type="square", cell_area=1000000, cell_nx=9, cell_ny=9, xoff=-4500, yoff=-4500
)

offset_grid

CoreGrid(square, A=1000000, nx=9, ny=9, n=81, bounds=(-4500.0, -4500.0, 4500.0, 4500.0))

Show code cell source

Hide code cell source

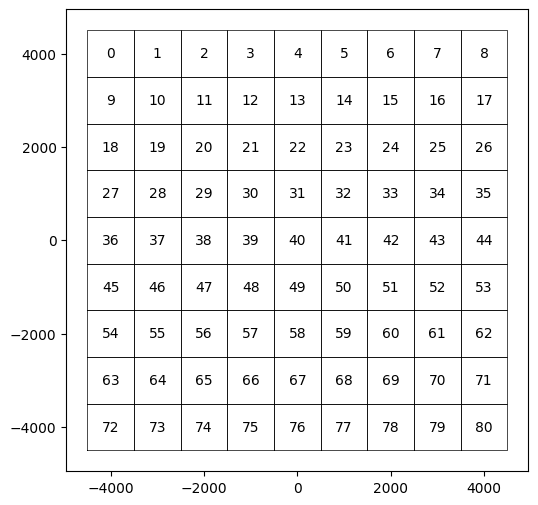

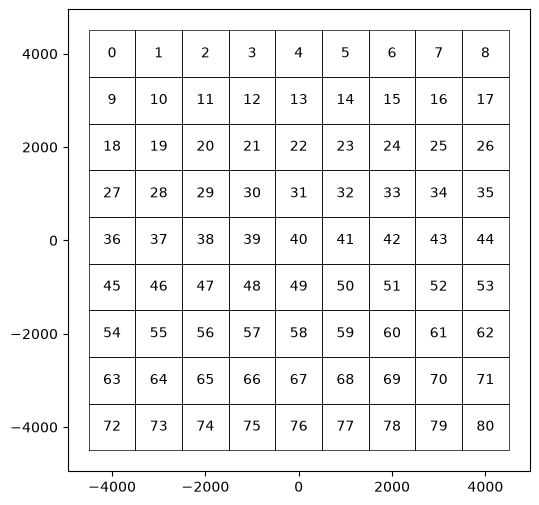

# Plot of the an offset grid
fig, ax = plt.subplots(1, 1, figsize=(6, 6))

# Plot the boundary polygon of each cell and label at the centroid
for cell_id in offset_grid.cell_id:

    poly = offset_grid.polygons[cell_id]
    centroid = offset_grid.centroids[cell_id]

    cx, cy = poly.exterior.coords.xy
    ax.plot(cx, cy, color="k", linewidth=0.5)
    ax.text(
        x=centroid[0],
        y=centroid[1],
        s=cell_id,
        ha="center",
        va="center",
    )

# 1:1 aspect ratio
ax.set_aspect("equal")

Neighbours

The set_neighbours method can be used to populate the neighbours attribute. This contains a list of the same length as cell_id, containing arrays of the cell ids of neighbouring cells. At present, only a distance-based neighbourhood calculation is used. The neighbours of a specific cell can then be retrieved using its cell id as an index.

square_grid.set_neighbours(distance=10)
square_grid.neighbours[45]

array([35, 44, 45, 46, 55])

hex_grid.set_neighbours(distance=15)
hex_grid.neighbours[40]

array([30, 31, 39, 40, 41, 48, 49])

Distances

The get_distance method can be used to calculate pairwise distances between lists of cell ids. A single cell id can also be used.

square_grid.get_distances(45, square_grid.neighbours[45])

array([[10., 10.,  0., 10., 10.]])

hex_grid.get_distances([1, 40], hex_grid.neighbours[40])

array([[38.74416988, 46.83941741, 42.98279727, 49.24298052, 56.86089612,
        53.72849659, 59.82952172],
       [10.74569932, 10.74569932, 10.74569932,  0.        , 10.74569932,
        10.74569932, 10.74569932]])

By default, cell-to-cell distances are calculated on demand, because the size of the complete pairwise distance matrix scales as the square of the grid size. However, the populate_distances method can be used to populate that matrix, and it is then used by get_distance for faster lookup of distances.

square_grid.populate_distances()
square_grid.get_distances(45, square_grid.neighbours[45])

array([[10., 10.,  0., 10., 10.]])

Mapping points to grid cells

The Grid class also provides methods to map coordinates onto grid cells.

Mapping coordinates

The map_xy_to_cell_id method is more general and simply returns the cell ids (if any) of the grid cells that intersect pairs of coordinates. Note that points that lie on cell boundaries will intersect all of the cells sharing a boundary.

The method returns a list of lists, giving the cell_ids for each pair of points in turn.

# A simple small grid
simple = Grid("square", cell_nx=2, cell_ny=2, cell_area=1, xoff=1, yoff=1)

# Points that lie outside, within and on cell boundaries
points_x = np.array([0.75, 1.25, 1.5, 2, 2.25, 3.25])
points_y = np.array([0.75, 1.25, 2, 2, 2.25, 3.25])

Show code cell source

Hide code cell source

# Plot the data
for cell_id in simple.cell_id:

    poly = simple.polygons[cell_id]
    centroid = simple.centroids[cell_id]

    cx, cy = poly.exterior.coords.xy
    plt.plot(cx, cy, color="k", linewidth=0.5)
    plt.text(
        x=centroid[0],
        y=centroid[1],
        s=cell_id,
        ha="center",
        va="center",
    )

plt.plot(points_x, points_y, "rx")

# 1:1 aspect ratio
plt.gca().set_aspect("equal")

# Recover the cells under each pair of points.
simple.map_xy_to_cell_id(points_x, points_y)

[[], [2], [2, 0], [2, 3, 0, 1], [1], []]

Mapping point coverage of grid

The map_xy_to_cell_indexing method takes a set of X and Y coordinates and checks that the points provide a one-to-one mapping to the grid cells.

The function will raise ValueError exceptions if:

• any points ambiguously lie on cell boundaries,

• if more than one point falls in any cell,

• if no points fall in a cell, or

• any points fall outside all the grid cells.

It then returns indices from the original X and Y axes that map the 2 dimensional data onto a one dimensional cell id axis in the correct order. This is primarily used in loading and validating a dataset and then coercing it into the standard internal representation.

# A small dataset with coordinates that covers the grid
data = np.array([[23, 33], [22, 32]])
cx = np.array([2.5, 1.5])
cy = np.array([1.5, 2.5])
idx_y, idx_x = np.indices(data.shape)

# Get the coordinates and indices along those coordinates as 1 dimensional arrays
idx_xf = idx_x.flatten()
idx_yf = idx_y.flatten()
points_x = cx[idx_xf]
points_y = cy[idx_yf]

# Validate and recover the mapping
dx, dy = simple.map_xy_to_cell_indexing(points_x, points_y, idx_xf, idx_yf)
print(dx, dy)

[1 0 1 0] [1 1 0 0]

data[dx, dy]

array([32, 33, 22, 23])

# A set of points that extend beyond the grid
data = np.array(
    [[14, 24, 34, 44], [13, 23, 33, 43], [12, 22, 32, 42], [11, 21, 31, 41]]
)
cx = np.array([3.5, 2.5, 1.5, 0.5])
cy = np.array([0.5, 1.5, 2.5, 3.5])
idx_x, idx_y = np.indices(data.shape)

# Get the coordinates and indices along those coordinates as 1 dimensional arrays
idx_xf = idx_x.flatten()
idx_yf = idx_y.flatten()
points_x = cx[idx_xf]
points_y = cy[idx_yf]

# Fails because points extend outside the grid
simple.map_xy_to_cell_indexing(points_x, points_y, idx_xf, idx_yf)

---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
Cell In[19], line 2
      1 # Fails because points extend outside the grid
----> 2 simple.map_xy_to_cell_indexing(points_x, points_y, idx_xf, idx_yf)

File ~/checkouts/readthedocs.org/user_builds/virtual-ecosystem/checkouts/latest/virtual_ecosystem/core/grid.py:579, in Grid.map_xy_to_cell_indexing(self, x_coords, y_coords, x_idx, y_idx)
    577 # Raise an exception where not all coords fall in a grid cell
    578 if 0 in cell_counts:
--> 579     raise ValueError("Mapped points fall outside grid.")
    581 # Values greater than 1 indicate coordinates on cell edges
    582 if any([c > 1 for c in cell_counts]):

ValueError: Mapped points fall outside grid.

Export grid to GeoJSON

A created grid can also be exported as GeoJSON using the dumps and dump methods:

simple = Grid("square", cell_nx=2, cell_ny=2, cell_area=1)

simple.dumps()

'{"type": "FeatureCollection", "features": [{"type": "Feature", "geometry": {"type": "Polygon", "coordinates": [[[0.0, 1.0], [1.0, 1.0], [1.0, 2.0], [0.0, 2.0], [0.0, 1.0]]]}, "properties": {"cell_id": 0, "cell_cx": 0.5, "cell_cy": 1.5}}, {"type": "Feature", "geometry": {"type": "Polygon", "coordinates": [[[1.0, 1.0], [2.0, 1.0], [2.0, 2.0], [1.0, 2.0], [1.0, 1.0]]]}, "properties": {"cell_id": 1, "cell_cx": 1.5, "cell_cy": 1.5}}, {"type": "Feature", "geometry": {"type": "Polygon", "coordinates": [[[0.0, 0.0], [1.0, 0.0], [1.0, 1.0], [0.0, 1.0], [0.0, 0.0]]]}, "properties": {"cell_id": 2, "cell_cx": 0.5, "cell_cy": 0.5}}, {"type": "Feature", "geometry": {"type": "Polygon", "coordinates": [[[1.0, 0.0], [2.0, 0.0], [2.0, 1.0], [1.0, 1.0], [1.0, 0.0]]]}, "properties": {"cell_id": 3, "cell_cx": 1.5, "cell_cy": 0.5}}]}'
